In this Section is described the visualization in tabular form of data relative to the Analysis.
The First Combo Box from high allows the choose of the type of Analysis to Post-Process.
1. Mission
2. GR [m2]
3. Fluxes [W]
4. GL [W/K] (not supported)
5. Temperature [K]
6. Power [W]

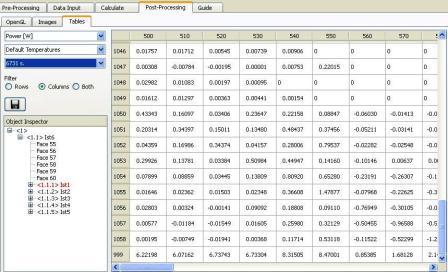

Figure 1
It is possible to Save Tables in CSV format with the dedicated Button.
The Second Combo Box from the high allows to choose the Analysis to Post-Process between those available of the type selected in the First Combo Box from high.
The cases 5 and 6 share the content of the Second Combo Box from high, both being Outputs of Temperature Analysis.
In the Case 6 a Third Combo Box exists, that allows the choice of the temporal instant.
In the Case 3 a Third Combo Box exists, that allows the choice of sources of Fluxes to visualize:
1. Planet
2. Albedo
3. Sun
4. Planet + Albedo
5. Planet + Sun
6. Albedo + Sun
7. Total
In the Case 3 it is available the tree structure of the Thermal Model used by Fluxes Analysis.
The tree structure is that of the Thermal Model/Models used in the Simulations.
Through it, it is possible to deselect Thermal Nodes shown in the Table.
Clicking over a branch of the tree structure, this branch and all children are colored in red, and respective Thermal Nodes are not shown in the Table.
For Faces with the same Thermal Node, it is sufficient that one of them is selected to visualize the respective Thermal Node in the Table.
In the Cases 2 and 6 three tree structures are available to deselect Thermal Nodes shown in the Table respectively on Rows, on Columns or Both.
The same considerations effectuated for tree structure of Case 3 are valid.
The set of Thermal Nodes deselected is the union of the sets of Thermal Nodes deselected through the three tree structures.
